TS-13-10

13" NetvioGO Plug & Play Touch Panel Controller

NetvioGo Inclusive — Pre-installed, no additional licensing costs.
Robust Touch Interface — 13.3″ capacitive display designed for continuous professional use.
Android Powered — Built on Android with a quad-core processor for smooth performance and future-proof capability.
Open Architecture — Upload and run third-party Android apps, enabling integration with UC platforms, signage, or building automation.
Fast Deployment — Boot and configured in under 60 seconds.
Wired or Wireless Connectivity — PoE+ for reliable AV integration or Wi-Fi for flexible placement.
Unified Control — Manage Netvio AV endpoints alongside third-party apps in a single touch interface.
Customizable Interfaces — Compatible with Netvio AppBuilder & Netvio360 for easy GUI creation.
Flexible Installation — Includes wall mount; optional TS-MT-10 angled tabletop mount available.
Back panel supports vesa 80/100 suitable for other stand types.

Display

Screen Size: 13.3″ capacitive touchscreen
Resolution: 1280 × 800 (16:10 aspect ratio)
Brightness: 300 cd/m²
Contrast Ratio: 1500:1
Viewing Angle: 178° (H/V)

System

Processor: ARM Quad-Core
Operating System: Android 12 (Android Powered)
Open Architecture: Supports third-party Android applications

Connectivity

Network: Gigabit Ethernet (PoE+)
Wireless: Dual-band Wi-Fi
USB: Type-C service port (optional use)

Functionality

Controls video system, connected HDMI sources, Displays, 3rd party audio systems, video walls and multiview applications.
See NetvioGo for full system capability.

Power

PoE+: IEEE 802.3at compliant
External PSU: 12V DC adapter (included)

Mechanical

Overall Dimensions: W: 330 mm × H: 225 mm × D: 28 mm
(13.0″ × 8.9″ × 1.1″)
Mounting: Wall-mount plate (included) / optional TS-MT-10 angled tabletop mount
Enclosure: Matte black, slim-profile design

Environmental

Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity: 20–90 % RH non-condensing

Compliance & Warranty

CE, UKCA, RoHS
5-Year Warranty (2-Year Advanced Replacement)

General License Information

License inclusive application for Apple and Android device.

Works with

All variants of JP4 Series AVoIP
All variants of HT2 Matrix solutions
Controls MV-H2-0402-10 MultiView
Compatible with SW Series Network Switches including PoE support.

Whats in the box

Touch Panel
PSU Unit with detachable regional power cord.
Removal back plate for wall mounting
Screws & Fixings.

IMPORTANT PRODUCT INFORMATION

The TS-13-10 is transitioning to a more compact 10inch version with the same operating functions. TS-13-10 available while inventory is used.

TS-13-10

13" NetvioGO Plug & Play Touch Panel Controller

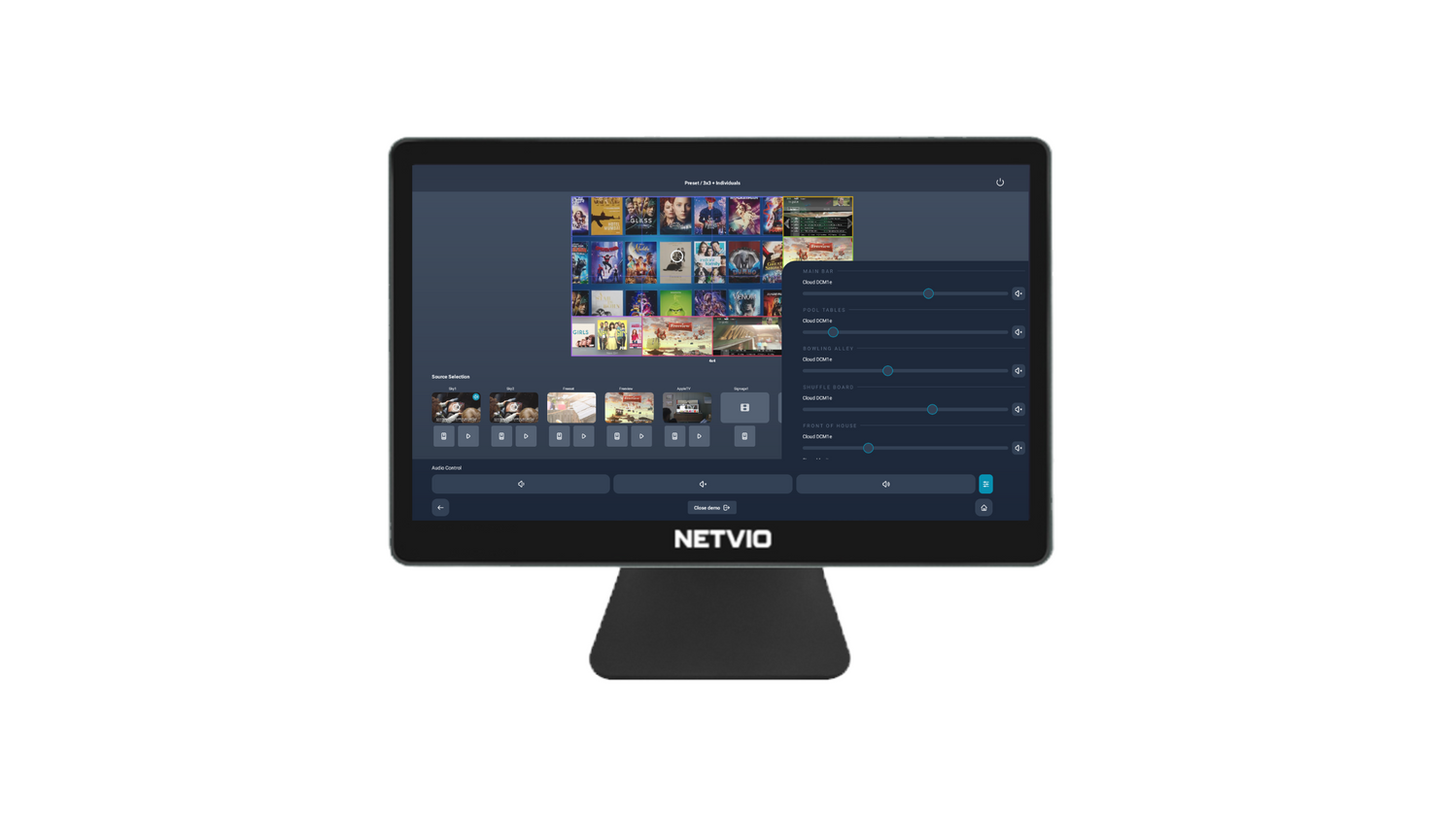

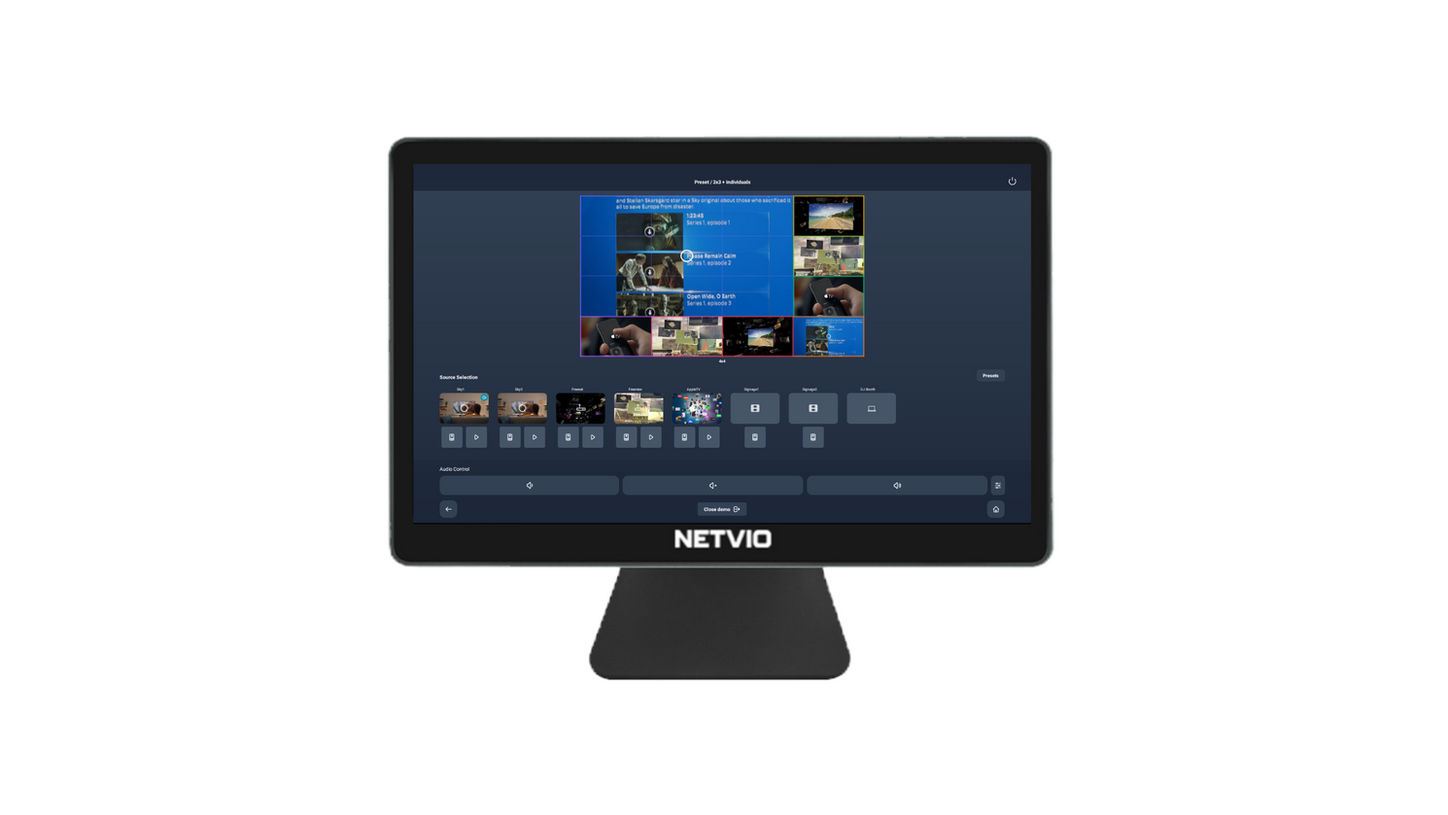

The Netvio TS-13-10 is a touch control station designed to simplify day-to-day operation of professional AV systems.

Fully integrated with Netvio360, AppBuilder, and NetvioGo, it enables installers to deliver customised user interfaces without programming expertise, ensuring rapid deployment and a consistent experience across projects.

The TS-13-10 delivers the best possible end-user experience through a responsive capacitive touchscreen and seamless integration with system functions such as video routing, multiview layouts, video walls, and third-party audio control.

Powered via robust PoE for dependable performance, the unit connects over standard Ethernet to reduce cabling and simplify installation.

With support for Netvio’s stunning ContentPlus+ streaming and full compatibility with IP-JP4-CL-10 controllers and IP-SW series switches, the TS-13-10 provides a true plug-and-play control solution that adds the finishing touch to a complete end-to-end Netvio system.

Fast Set-Up

PoE

Optimized for NetvioGo

Add 3rd Party Apps

Wall or Counter Mount

IMPORTANT PRODUCT ANNOUNCEMENT

The TS-13-10 touchscreen will be replaced by a more compact 10-inch version by the end of 2025. The 13-inch model will remain available only while stocks last.

The new replacement order code will be TS-10-10.

Audio & Video Control

Name: Netvio EX-HT2-701-10 HDBaseT Extender
Brand: Netvio
SKU: EX-HT2-701-10
Price: 458.00 GBP
Availability: InStock

With Netvio, audio and video control are combined into a single user interface, removing the cost and complexity of traditional control systems. The TS-13-10 makes it easy for users to manage sources, displays, and sound without extra processors or programming.

Now supporting an expanding range of third-party audio brands, Netvio delivers seamless integration alongside its own JP4 and HT2 solutions. From controlling DSPs and amplifiers to synchronizing sound with video walls, installers and end-users gain a simple, unified experience that’s fast to set up and cost-effective to deploy.

The TS-13-10 is supplied with a slim wall-mount plate for fixed installations, providing a clean, professional appearance. For environments where a tabletop presentation is preferred, the optional TS-MT-10 mount is available.

This angled mount allows the panel to sit on a desk, podium, or counter, giving installers and end-users more flexibility in how the panel is presented. Both options ensure the TS-13-10 integrates seamlessly into any venue design.
The panel is designed for flexible powering options. In most installations it will be powered via PoE+ (IEEE 802.3at), which allows both power and data to be delivered over a single network cable — reducing installation time and cabling requirements. The TS-13-10 is fully compatible with Netvio's SW Series switches.

For installations where PoE+ is not available, the TS-13-10 can also be powered with the included 12 V DC adapter, making it adaptable to a variety of environments.
Yes. The TS-13-10 is designed to be simple and fast to install, even for projects without advanced IT or control system programming. The panel ships with NetvioGo inclusive, meaning it comes ready to use straight out of the box.

Installers can power it directly via PoE+, allowing a single cable to provide both power and data, or use the included DC adapter if preferred.

Configuration is equally straightforward. With Netvio AppBuilder, installers can design and deploy custom interfaces without coding.

In most cases, setup takes just a few minutes: mount the panel, connect PoE+, and load the desired AppBuilder project. This streamlined approach eliminates the cost and complexity normally associated with traditional control systems.
The TS-13-10 was primarily designed to provide a robust, hardwired network connection, giving installers and end-users the most reliable control interface to complement other wireless devices in a Netvio system. By anchoring the control panel on Ethernet (PoE+), it ensures long-term stability in professional installations.

That said, the TS-13-10 also supports dual-band Wi-Fi connectivity, making it easy to deploy in spaces where running additional cabling is difficult or not possible. This flexibility means the panel can be adapted to a wide range of scenarios, from permanent professional venues to dynamic multi-room environments.
Yes. Because the TS-13-10 is Android powered, it supports an open architecture that allows third-party Android apps to be uploaded and run directly on the device. This flexibility makes it possible to integrate dedicated lighting and HVAC control apps alongside NetvioGo.

By combining these capabilities into a single panel, the TS-13-10 enables system designers to deliver a unified interface that manages both AV and environmental systems in one place — without the cost and complexity of a traditional control system.
Unlike consumer tablets such as iPads or Android devices, the TS-13-10 is purpose-built for commercial AV control. Its rugged design is made for harsher, high-use environments like hospitality, classrooms, and conference spaces.

Powered by PoE+ for a reliable hardwired connection, it avoids the charging and Wi-Fi issues common with consumer tablets. The TS-13-10 also features an onboard processor matched to NetvioGo, capable of handling multi-RTSP ContentPlus+ streams for live previews.

Combined with a five-year warranty and permanent mounting options, it delivers long-term reliability that consumer tablets cannot match.
The TS-13-10 is designed as a central control hub for a wide variety of AV systems and connected devices. Out of the box, it provides seamless control for:

Video Systems — Full management of Netvio JP4 AV-over-IP endpoints and HT2 extenders.

HDMI Input Sources — Switching and routing of laptops, media players, set-top boxes, and other HDMI devices.

3rd Party Audio Systems — Integration with DSPs, amplifiers, and audio processors for volume, routing, and zone control.

Video Walls — Preset recall, layout management, and configuration up to 16x16.

Multiview — Control of custom multiview layouts for collaboration and monitoring.

And because the TS-13-10 is Android powered with open architecture, it can run additional third-party apps, enabling it to control virtually anything — including lighting, HVAC, and other building systems. This allows system designers to create a single, unified interface that goes well beyond the capabilities of a traditional AV control panel.

TS-MT-10

The TS-13-10 ships with a low-profile mounting plate, allowing quick and secure installation on most flat surfaces straight out of the box. This ensures a clean, professional finish with minimal setup.

For projects requiring a tabletop or angled presentation, the optional TS-MT-10 mount provides a versatile countertop solution. It features adjustable swivel and tilt angles, giving users enhanced flexibility to position the screen for optimal visibility in conference rooms, hospitality venues, or shared workspaces.

Additionally, the rear mounting plate of the TS-13-10 is fully compatible with VESA 80 and VESA 100 standards, enabling integration with a wide range of universal brackets and mounting systems.
