SP-H2-0104-10

1×4 HDMI 2.0 18Gbps Splitter with 4K60 HDR, Audio Extraction & Scaling

1×4 HDMI 2.0 Splitter – Distribute one HDMI source to four displays simultaneously.
Ultra HD Performance – 18Gbps bandwidth, 4K60 4:4:4 video with HDR10, Dolby Vision, and HLG support.
Audio Extraction – Analog stereo (3.5mm) and optical S/PDIF outputs from HDMI source.
4K→1080p Scaling – Downscale outputs for compatibility with Full HD displays.
Flexible EDID Management – AUTO and COPY modes ensure reliable system performance.
Broad Audio Format Support – PCM, Dolby, DTS, and HD audio.
Professional Build – Compact, metal enclosure designed for reliability in AV installations.

Video

HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2 / 1.4
Bandwidth: 18Gbps
Resolutions: Up to 3840×2160 @60Hz 4:4:4, 1080p, 720p
Color Depth: 8-bit (4K60), 12-bit (1080p)
Color Space: RGB, YCbCr 4:4:4, 4:2:2
HDR Support: HDR10, Dolby Vision, HLG

Audio

HDMI Audio: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS-HD Master Audio, DTS, DSD
Optical Output: LPCM 2.0, Dolby 5.1, DTS formats
Analog Output: Stereo PCM 2.0 (3.5mm mini-jack)

Inputs / Outputs

Inputs: 1× HDMI (Type-A)
Outputs: 4× HDMI (Type-A)
Audio Outputs: 1× Optical (S/PDIF), 1× Analog Stereo (3.5mm)

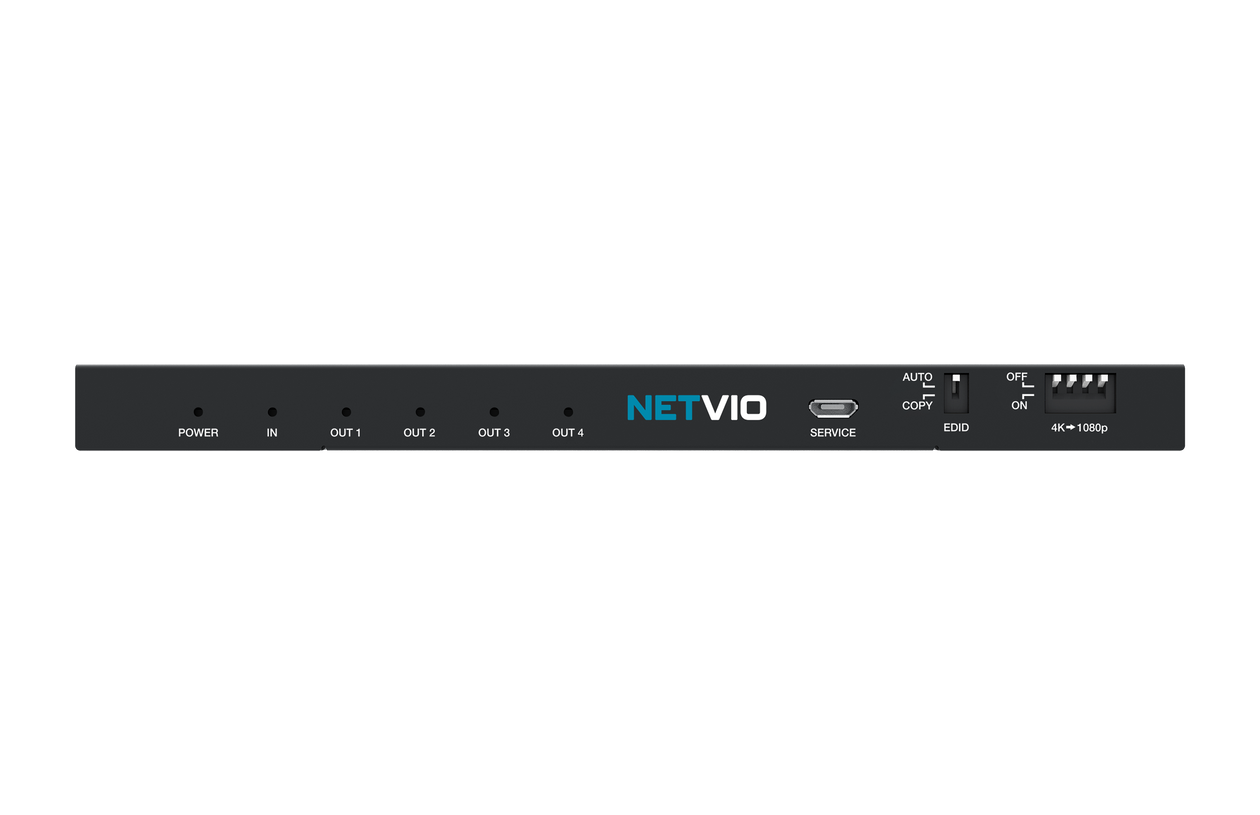

Control & Features

EDID Control: AUTO / COPY (panel switch)
Video Scaling: 4K→1080p selectable per output

Mechanical

Dimensions: 180 × 62 × 14 mm (7.08″ × 2.44″ × 0.55″)
Weight: 227g (0.50 lbs)
Enclosure: Metal, black finish

Environmental

Operating Temp: 0–40°C (32–104°F)
Storage Temp: –20–60°C (–4–140°F)
Humidity: 20–90% RH, non-condensing

Power

Supply: DC 5V/1A (included)
Consumption: 3.5W (max)

What’s in the Box

1× SP-H2-0104-10 HDMI 1×4 Splitter
1× 5V/1A Power Adapter
1× User Information

Warranty

5 Years (for full details, visit the Netvio website)

SP-H2-0104-10

1×4 HDMI 2.0 18Gbps Splitter with 4K60 HDR, Audio Extraction & Scaling

The Netvio SP-H2-0104-10 is a 1×4 HDMI 2.0 Splitter with Audio Extraction and 4K→1080p Scaling, designed for professional AV distribution in corporate, residential, education, and retail applications. Supporting 18Gbps HDMI 2.0b with HDCP 2.2/1.4 compliance, it delivers uncompromised 4K60 4:4:4 HDR video across up to four displays simultaneously.

In addition to splitting, the unit integrates audio extraction to analog stereo and optical S/PDIF outputs for flexible audio system integration. With its scaling function, one or more outputs can downscale 4K signals to 1080p, ensuring reliable operation with mixed UHD and Full HD displays.

Selectable EDID modes (AUTO / COPY) ensure system compatibility by providing the correct handshake between sources and displays. Compact, reliable, and installer-friendly, the SP-H2-0104-10 is the perfect solution for distributing a single HDMI source across multiple displays while maintaining pro-level video and audio performance.

18Gb

4K60 4:4:4

Audio Ouputs

EDID

Plug & Play

Yes. The SP-H2-0104-10 includes a built-in 4K→1080p downscaler to support mixed-resolution systems. If some displays are UHD and others are Full HD, the splitter automatically delivers a 4K signal to capable displays while downscaling to 1080p for those that require it. This ensures all screens work reliably together without blanking or errors.
In addition to passing audio through HDMI, the splitter can extract audio via optical (S/PDIF) and 3.5 mm stereo outputs. Optical supports multi-channel formats such as Dolby Digital, Dolby TrueHD, DTS-HD, and more, while the 3.5 mm stereo port outputs standard PCM 2.0. This allows audio to be routed separately to AV receivers, soundbars, or stereo amplifiers without additional hardware.
The unit offers two EDID management modes via a simple dial switch: AUTO compares the EDID of all connected displays and negotiates the best common resolution for the source. COPY uses the EDID of HDMI OUT1 as the reference, ensuring that the source matches one priority display. If OUT1 is unavailable, the unit automatically checks outputs 2 through 4 in order. This flexibility gives installers complete control over video compatibility.
Yes. It fully supports HDR10, Dolby Vision, and HLG pass-through. This means UHD content with HDR is distributed to every compatible display without loss of brightness, contrast, or color depth. Users benefit from the most accurate and vivid picture quality, whether in residential or commercial applications.
No. The SP-H2-0104-10 is a true plug-and-play device. Once the HDMI source, displays, and optional audio outputs are connected, the installer only needs to set the EDID and scaler switches. No additional software or drivers are needed, simplifying installation and reducing setup time.
The splitter supports up to 4K60 4:4:4 at 18 Gbps, the highest bandwidth allowed under HDMI 2.0b. This ensures pixel-perfect reproduction of UHD video content. Combined with HDR support and professional-grade audio extraction, the SP-H2-0104-10 delivers a premium viewing and listening experience across all connected displays.
For short runs (up to 5 m / 16 ft), we recommend HDMI 2.0b certified high-speed cables that support 18 Gbps. For longer distances, active HDMI cables or HDMI fiber optic (AOC) solutions should be used to maintain full 4K60 4:4:4 HDR performance. For audio, use standard optical Toslink cables or 3.5 mm stereo interconnects depending on the audio system being integrated.
