Name: Netvio EX-HT2-701-10 HDBaseT Extender
Brand: Netvio
SKU: EX-HT2-701-10
Price: 458.00 GBP
Availability: InStock

EX-HT2-402-10

HDMI over HDBaseT Extender with HDMI Loop Out, Audio Extraction, IR, RS-232, CEC & PoC (40m 4K / 70m 1080p)

HDMI 2.0b, HDCP 2.2 / 1.4 and DVI 1.0 compliant
18Gbps bandwidth, supports resolutions up to 4K60Hz 4:4:4
Transmission up to 40m at 4K or 70m at 1080p
HDMI loop output on transmitter for local display/monitoring
De-embedded stereo audio output on receiver (3.5mm)
Bi-directional IR, RS-232, and CEC pass-through for complete control integration
HDR formats supported: HDR10, HDR10+, Dolby Vision, HLG
PoC (Power over Cable) – one power supply powers both units

Video

Compliance: HDMI 2.0b, HDCP 2.2 / 1.4, DVI 1.0
Bandwidth: 18Gbps
Resolutions: 4K@60Hz 4:4:4, 4K@30Hz 4:4:4, 1080p, 1080i, 720p, 480p, PC up to 1920×1200
Color Depth: 8/10/12-bit (varies by resolution)
Color Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDR Support: HDR10, HDR10+, Dolby Vision, HLG

Audio

HDMI: LPCM 2.0–7.1, Dolby Digital/TrueHD/Plus, DTS-HD, DTS:X
Analog L/R: PCM 2.0 (receiver output)

Extension Distance

40m (131ft): 4K@60Hz 4:4:4 over Cat6/6a
70m (230ft): 1080p60 over Cat6/6a

Mechanical

Enclosure: Metal with mounting ears, black finish
Dimensions (W × D × H):
- 140 × 65 × 18 mm
- 5.51" × 2.56" × 0.71"
Weight:
- Transmitter: 160 g / 0.35 lbs
- Receiver: 155 g / 0.34 lbs

Environmental

Operating Temperature: 0–40°C / 32–104°F
Storage Temperature: –20–60°C / –4–140°F
Humidity: 20–90% RH (non-condensing)
ESD Protection: ±8kV air, ±4kV contact

What’s in the Box

1 × HDMI over HDBaseT Transmitter
1 × HDMI over HDBaseT Receiver
1 × IR Blaster Cable (1.5 m)
1 × IR Receiver Cable (1.5 m)
1 × 24V / 1A Locking Power Adapter
2 × 3-pin Phoenix Connectors
4 × Mounting Ears + Screws
1 × User Information

Connectivity

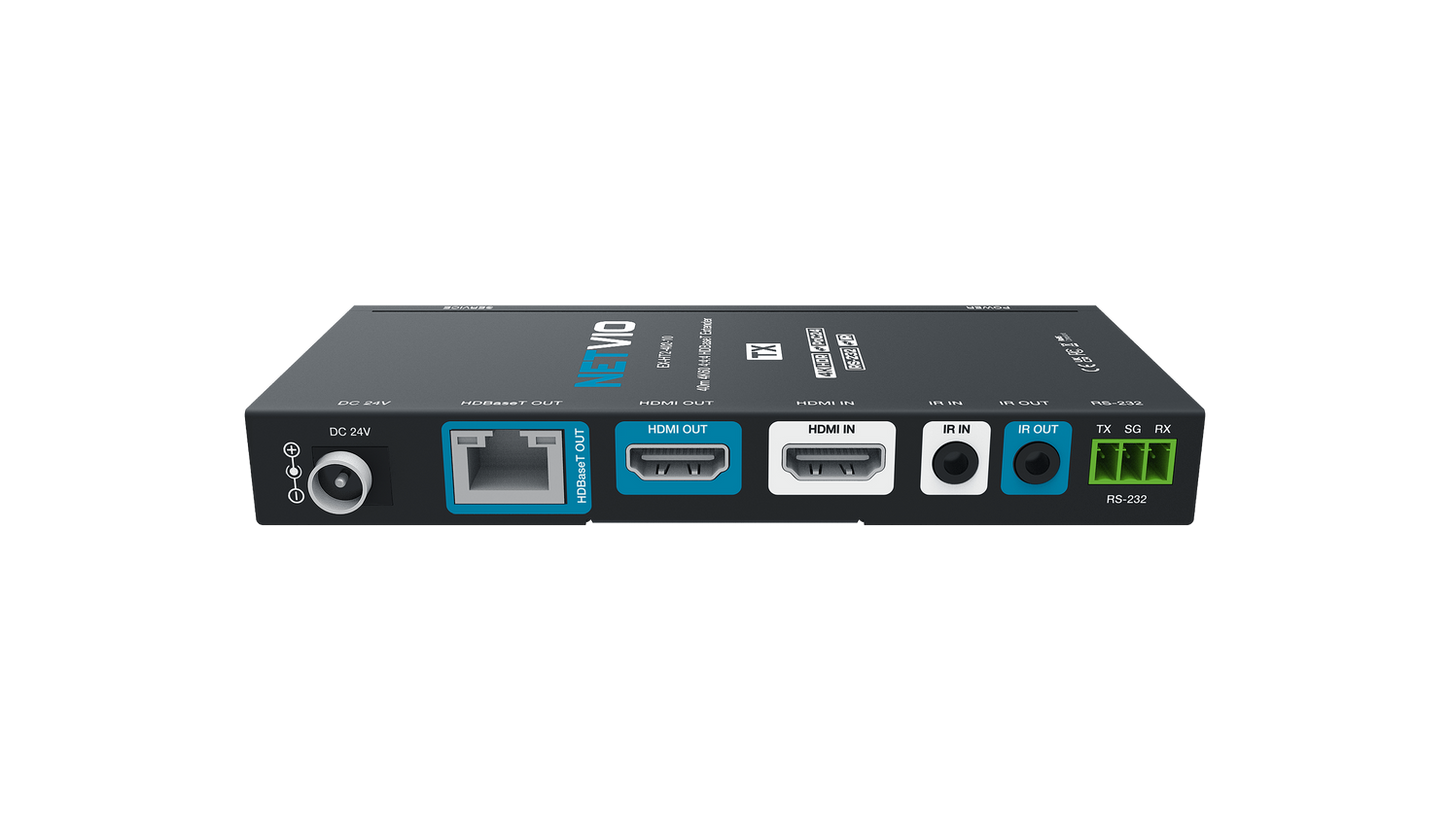

Transmitter (TX):
- 1× HDMI In (Type A, 19-pin)
- 1× HDMI Loop Out (Type A, 19-pin)
- 1× HDBT Out (RJ45)
- Control: 1× IR In, 1× IR Out, 1× RS-232 (Phoenix), 1× Mini-USB (Service)

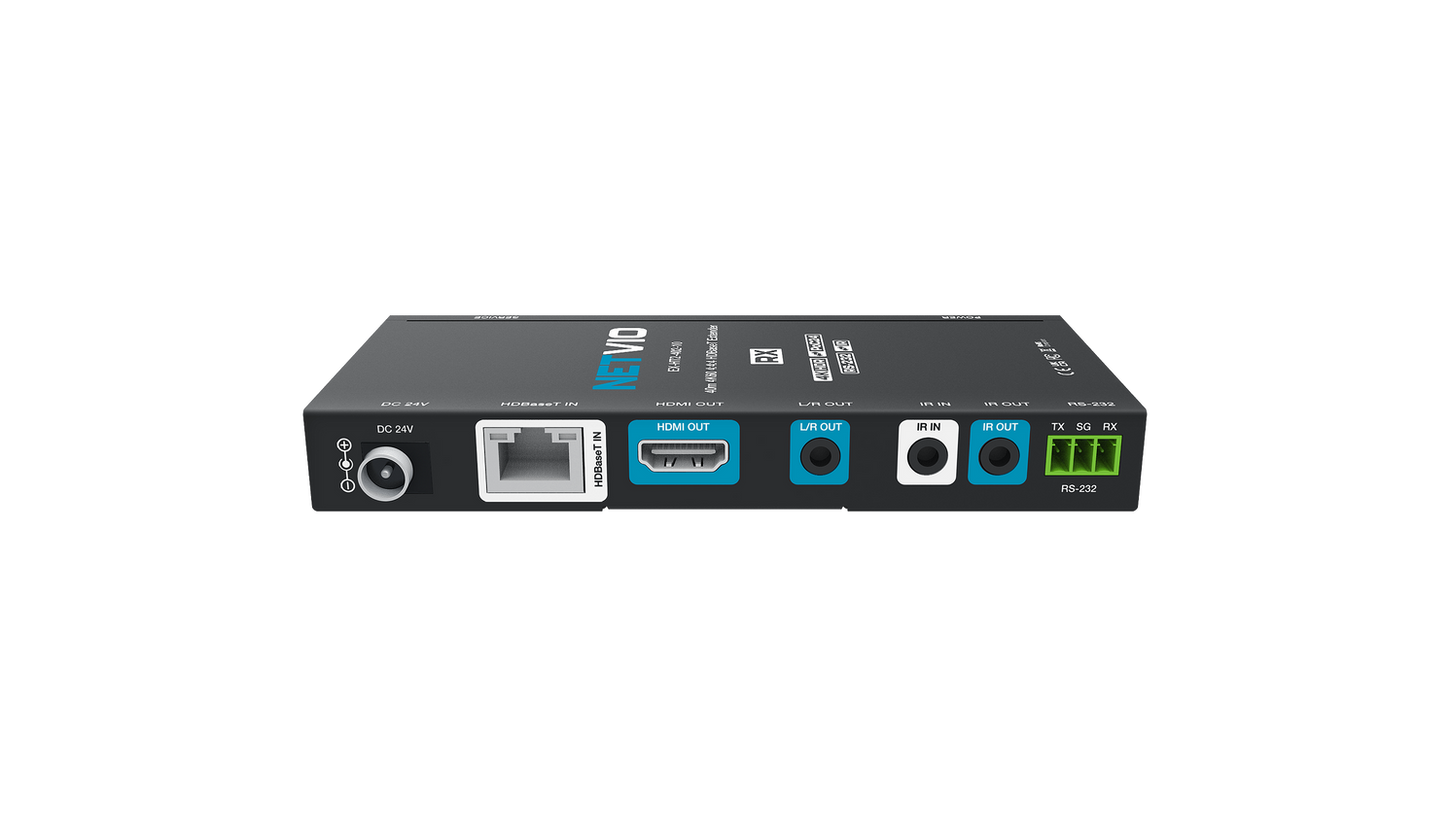

Receiver (RX):
- 1× HDBT In (RJ45)
- 1× HDMI Out (Type A, 19-pin)
- 1× L/R Out (3.5mm stereo mini-jack)
- Control: 1× IR In, 1× IR Out, 1× RS-232 (Phoenix), 1× Mini-USB (Service)

General

PoC (Power over Cable): Yes, only one unit requires DC 24V/1A supply
LED Indicators: Power, link and signal status
Power Supply: AC 100–240V, 50/60Hz input → DC 24V/1A output (locking connector)
Power Consumption: 9.36W (typical)

EX-HT2-402-10

18Gbps HDMI over HDBaseT Extender with HDMI Loop Out, Audio Extraction, IR, RS-232, CEC & PoC (40m 4K / 70m 1080p)

The Netvio EX-HT2-402-10 is a professional HDMI over HDBaseT extender designed for reliable signal distribution.

Supporting 4K60 4:4:4 video with HDR10+, Dolby Vision, and HLG up to 40m, or 1080p up to 70m, it delivers exceptional clarity over a single Cat6/6a cable. The transmitter includes an HDMI loop output for local monitoring, while the receiver offers de-embedded stereo audio output for direct connection to amplifiers or powered speakers.

With bi-directional IR, RS-232, CEC pass-through, PoC power sharing, and compact metal enclosures, the EX-HT2-402-10 is a versatile, installer-friendly solution for both residential and commercial AV projects.

4K60 (4:4:4)

40m (131ft)

TX Loop Out

2-Way IR

RS-232

For best results, Netvio strongly recommends using CAT6 or CAT6a shielded twisted pair cable for all long-distance HDMI transmission. While CAT5e or CAT6 may be sufficient for shorter runs, premium cabling will help guarantee full 4K60 4:4:4 performance across the stated distances and reduce the risk of signal degradation.

Always ensure that cables are terminated to the TIA/EIA-568B standard and avoid running them alongside mains power cables to minimize interference.

⚠️ Note: Pre-made patch cables using stranded copper (common in consumer-grade products) may not achieve the advertised transmission distances. For optimal performance, use solid copper cables typically found in professional installations.
The EX-HT2-402-10 supports the full HDMI 2.0b specification at 18Gbps, making it capable of handling today’s highest-quality video signals. This includes 4K60Hz 4:4:4 chroma sampling with full HDR support up to 40m (131ft), as well as 1080p60 Full HD signals up to 70m (230ft). By preserving pixel-for-pixel accuracy, the extender ensures pristine video delivery even for demanding applications such as LED walls, large-format displays, and home cinema systems.
Yes. The unit is fully compatible with leading HDR formats, including HDR10, HDR10+, and Dolby Vision. This guarantees that your system will accurately reproduce expanded color gamuts and enhanced contrast ranges when used with HDR-capable displays. Whether in residential cinema, corporate boardrooms, or commercial signage, HDR support ensures that video content is delivered with maximum visual impact and fidelity.
Alongside video, the EX-HT2-402-10 passes through HDMI audio formats such as PCM stereo, Dolby Digital, Dolby TrueHD, DTS-HD Master Audio, and DSD. This ensures that immersive multi-channel audio tracks remain intact from the source to the display or audio processor. Installers can confidently use the extender in high-end AV environments knowing that both audio and video integrity are preserved.
The HDMI Loop Out on the EX-HT2-402-10 transmitter provides a direct, local HDMI output that mirrors the connected source. This feature is extremely versatile and can be used in several ways:

Local Monitoring – Connect a nearby display, projector, or confidence monitor to view the source content without requiring a receiver. This is especially useful in control rooms, classrooms, and AV racks where the source needs to be monitored locally.

Signal Verification – During installation, the loop out can be used to quickly confirm that the source device is outputting video correctly before sending the signal across the HDBaseT link.

Dual Display Applications – Use the loop out to drive a local display while simultaneously extending the same signal to a remote display via the receiver, creating a simple two-screen setup without requiring a matrix or splitter.

Integration with Additional Equipment – The loop out can also feed devices such as AVRs (audio video receivers), scalers, or streaming encoders if a secondary local HDMI signal path is needed.

By including this output, the EX-HT2-402-10 adds flexibility, reduces the need for additional HDMI splitters, and makes installation more efficient.
