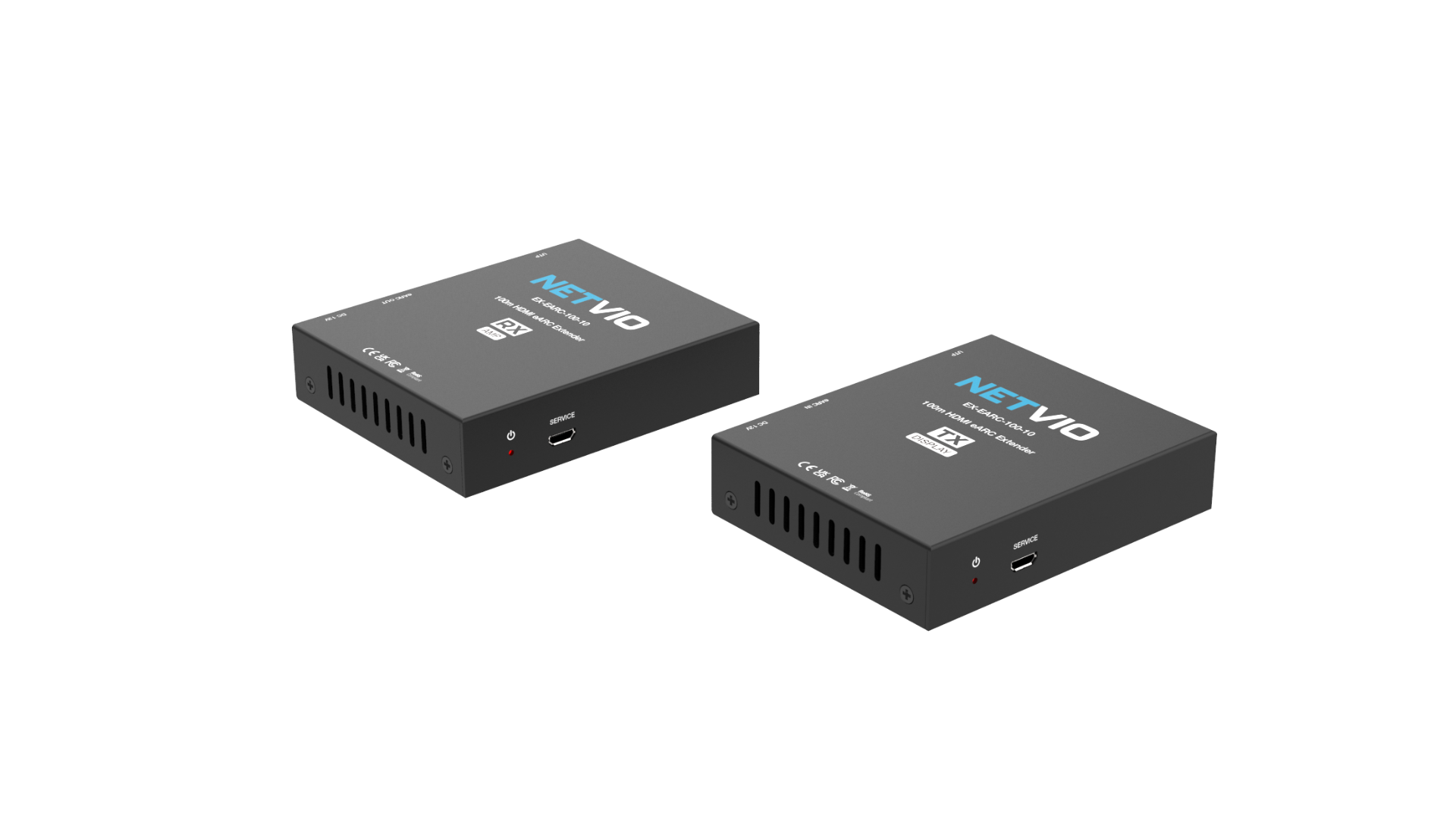

EX-EARC-100-10

HDMI eARC & SPDIF Audio Extender 100m (328ft)

Versatile Integration — Works with both ARC/eARC-enabled TVs and legacy SPDIF sources.
High-Resolution Audio — Supports uncompressed and immersive audio formats including Dolby Atmos and DTS-HD MA.
100 m (328 ft) Distance — Extend HDMI eARC or SPDIF audio reliably over CAT cable.
ARC & eARC Support — Supports PCM 2.0/5.1/7.1, Dolby Digital, Dolby Digital+, DTS, Dolby TrueHD, DTS-HD MA, and Dolby Atmos.
SPDIF Mode — Dedicated pass-through for TVs without ARC/eARC function.
CEC Pass-Through — Maintains control functionality in HDMI eARC mode.
PoC Powered — Bidirectional Power over Cable with 12V adapter included.
Compact & Durable — Metal housing ensures professional reliability.

Audio

Transmission Distance: Up to 100 m (328 ft)
Audio Formats:
eARC: PCM 2.0/5.1/7.1, Dolby Digital, Dolby Digital+, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos
ARC: PCM 2.0, Dolby 5.1, DTS 5.1
SPDIF: PCM 2.0, Dolby 5.1, DTS 5.1

Connectivity

Inputs (TX): 1 × SPDIF Optical, 1 × HDMI eARC (Type A), 1 × DC 12V
Outputs (RX): 1 × SPDIF Optical, 1 × HDMI eARC (Type A), 1 × DC 12V

Power

Power Supply: DC 12V/1A (PoC supported, 1 adapter included)
Power Consumption: < 5.65 W

Mechanical

Housing: Metal, black finish
Dimensions (W × D × H): 90 mm × 72 mm × 20 mm (3.5″ × 2.8″ × 0.8″)
Weight: 184 g (0.40 lbs) per unit

Environmental

Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity: 20–90 % RH non-condensing

Compliance & Warranty

CE, UKCA, RoHS
5-Year Warranty (subject to terms & conditions)

What's in the box

1 × Transmitter (TX)
1 × Receiver (RX)
1 × 12V/1A locking power adapter
1 × User manual

EX-EARC-100-10

HDMI eARC & SPDIF Audio Extender 100m (328ft)

The Netvio EX-EARC-100-10 is a high-performance HDMI eARC audio extender designed to deliver uncompressed, lossless audio over a single Cat6/6A cable. Supporting distances of up to 100 m (328 ft), it transmits the full bandwidth of eARC audio formats including Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos without compromise.

With PoC (Power over Cable) functionality, bi-directional IR control, and simple plug-and-play setup, the EX-EARC-100-10 provides installers with the perfect solution for overcoming HDMI cable distance limitations. Built as the ideal companion for modern TVs, AV receivers, and premium sound systems, it ensures flawless audio return in both residential and commercial AV environments.

100m (328ft)

Designed for eARC

Dolby Atmos

CEC

PoC

Dolby Atmos, DTS-HD

Name: Netvio EX-HT2-701-10 HDBaseT Extender
Brand: Netvio
SKU: EX-HT2-701-10
Price: 458.00 GBP
Availability: InStock

Uncompressed, lossless audio ensures the full fidelity of premium formats such as Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos.

Unlike compressed signals, every detail and dynamic is preserved, delivering cinema-quality sound exactly as intended.

With the EX-EARC-100-10, installers can extend eARC over long distances with complete confidence that no performance is lost.

The EX-EARC-100-10 supports the latest HDMI eARC standard, which means it can carry uncompressed, high-resolution multichannel audio formats such as Dolby TrueHD, DTS-HD Master Audio, and Dolby Atmos. By comparison, ARC-only extenders are limited to compressed formats like Dolby Digital or DTS 5.1. This difference is critical for home theaters and professional AV systems where premium surround sound performance is expected. With the EX-EARC-100-10, you can achieve the same audio quality over CAT cabling as if the AVR or processor were directly connected to the TV.
Yes. The extender includes a dedicated SPDIF mode, which allows digital optical audio to be extended up to 100 m even from TVs or sources without ARC/eARC. This makes it a versatile solution that can bridge both modern and legacy systems. For example, an older display may only provide optical output, while a new AVR or soundbar might expect HDMI eARC — the EX-EARC-100-10 ensures compatibility in either scenario without requiring extra converters.
No. Thanks to bidirectional Power over Cable (PoC), only one unit needs to be powered using the supplied 12 V adapter. The second unit automatically receives power through the CAT cable, eliminating the need for multiple power outlets at both ends. This not only makes installation cleaner but also saves time in rack builds and retrofit projects where powering both ends might be inconvenient. Both transmitter and receiver have a DC input, but only one adapter is required in practice.
For optimal performance, we recommend using CAT6, CAT6a, cable. These higher-grade cables ensure maximum bandwidth and stable transmission over the full 100 m (328 ft) distance. Standard CAT5e can work for shorter runs, but at higher sample rates or with uncompressed formats such as Dolby Atmos, the more robust cabling provides greater reliability and signal integrity. In environments with high electromagnetic interference, shielded variants (STP) may be preferred to further reduce the chance of dropouts.
The EX-EARC-100-10 is widely used in home cinema systems, boardrooms, and hospitality AV installations. In residential projects, it is perfect for sending premium audio formats from a wall-mounted TV back to an AVR or amplifier located in a central rack. In commercial and hospitality spaces, it ensures that long-distance audio connections are possible without compromising quality, making it suitable for multi-zone music distribution or conference systems where both legacy SPDIF and modern HDMI eARC sources must be supported.
